Wide wavelength range spectrometer (200 ~ 1025 nm)

The SEC2120 spectrometer system is designed for a wide range of spectrometric applications, with a particular focus on spectroelectrochemical measurements. Its advanced optical design and high-performance diffraction grating enable highly sensitive measurements across a broad wavelength range, covering ultraviolet to near-infrared regions (UV/VIS/NIR) within a single unit.

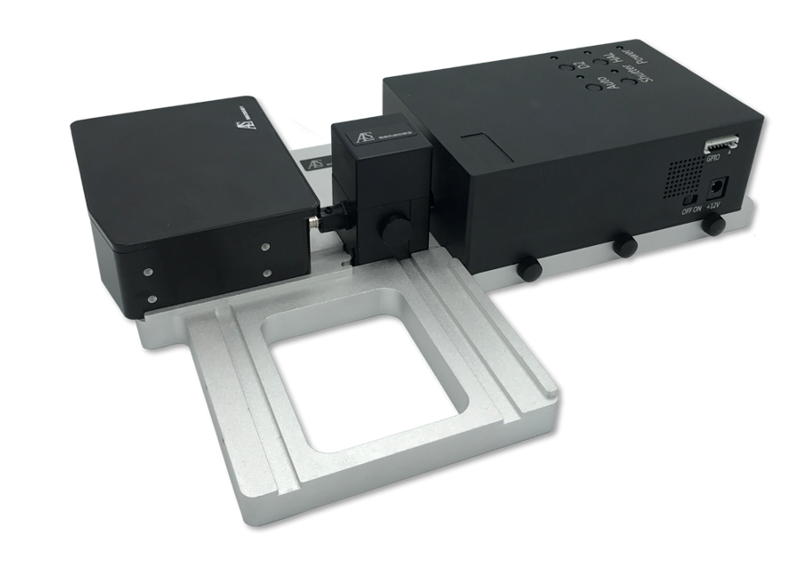

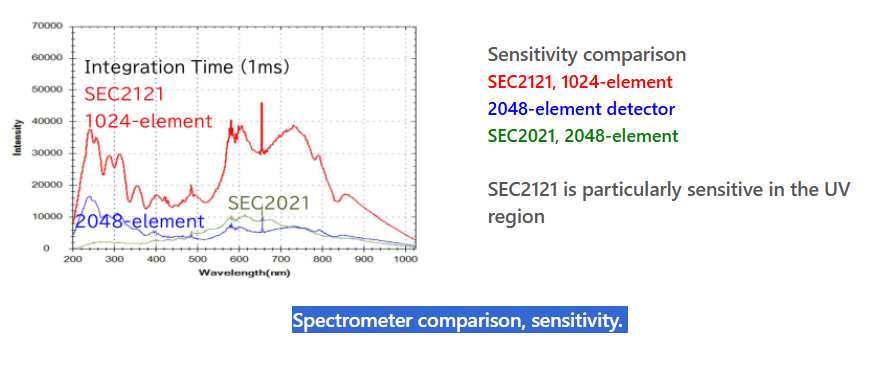

The SEC spectrometer features a high-speed CMOS detector capable of extremely short exposure (integration) times of up to 100 µs, making it suitable for measuring high-intensity light. The system includes compact, modular deuterium and halogen light sources, which are aligned with the cell holder and mounted on an accessory platform for convenient operation.

By attaching a collimator lens to the light source, an SMA905 interface is provided for optical fiber connections, while the spectrometer itself also supports direct connection via an SMA905 optical fiber.

קבל הצעת מחיר
לאתר היצרן
התקשר אלינו

לפרטים נוספים והצעת מחיר, מלא את הפרטים למטה

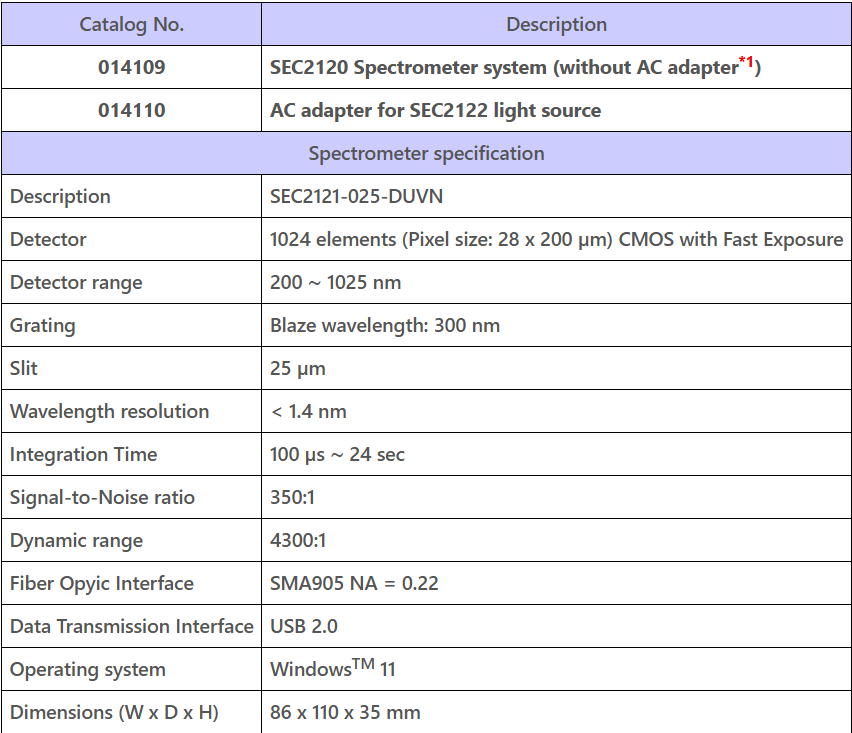

Specifications

Specifications

Application

  • Spectroelectrochemical analysis
  • Characterization of solution composition and properties
  • Thin film thickness and composition measurements
  • Fluorescence analysis
  • Environmental analysis, including water and soil testing



כתוב את הכותרת כאן

Technology & Specifications
