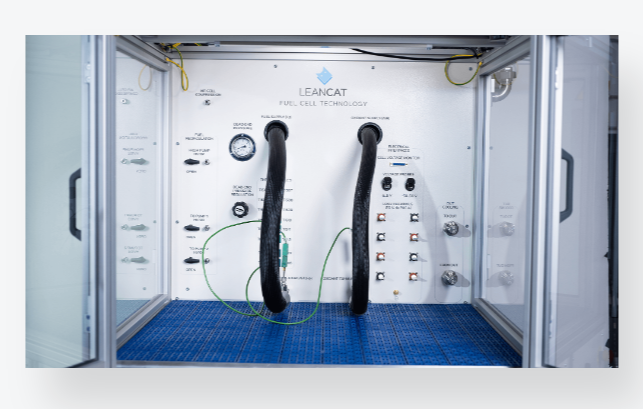

Fuel Cell Test Station PTS-50
Perfectly tailored for research and development of large-area single cells or validation of stack design at a short-stack level. The well-defined and repeatable conditions of Leancat PTS-50 facilitate fuel cell benchmarking, supported by extensive scripting capabilities.
- Appropriate for low-temperature PEM fuel cells
- Facilitates testing of short stacks or large-area single cells
- Automatically controls flow rate, humidity, temperature, and back pressure for anode and cathode lines
- Offers a range of electronic loads and potentiostats
- Features cell/stack temperature control via a liquid cooling circuit
- Employs a robust system based on an industrial PLC with data logging into an SQL database
- Includes safety features for fully automated operation
- Holds a CE certificate of conformity
לפרטים נוספים והצעת מחיר, מלא את הפרטים למטה
Specifications
Power Range: 10 – 50 kW
Fuel Flow-Rate Range: 25 – 1250 slpm
Dew-Point Temperature Range: up to 90 °C
Liquid Cooling Of Cell/Stack: up to 95 °C
Cell Voltage Monitoring: Up to 1000 channels
Max. Current: 1200 A
Oxidant Flow-Rate Range: 90 – 4500 slpm
Gas Pre-Heating Temperature Range: up to 120 °C
Back-Pressure Control Rang: up to 3 bar(g)
Options: Stack pre-heating, dead-end mode
