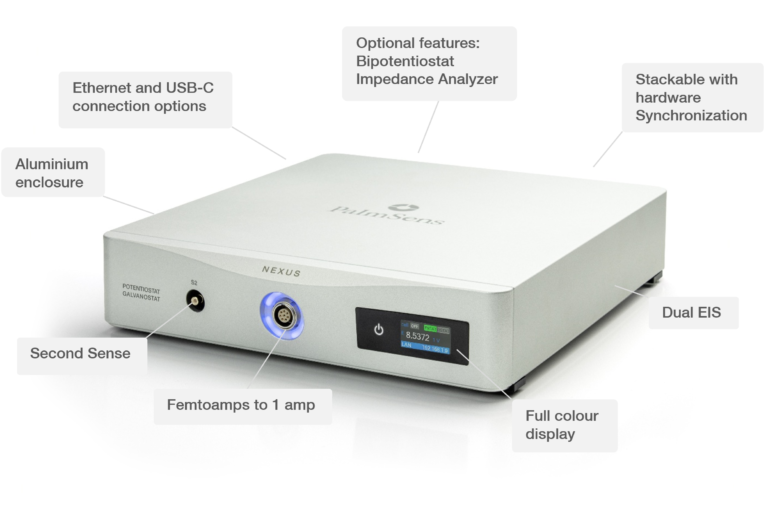

Nexus - Potentiostat, Galvanostat
Electrochemical Impedance Analyzer

• Potentiostat/Galvanostat Features:

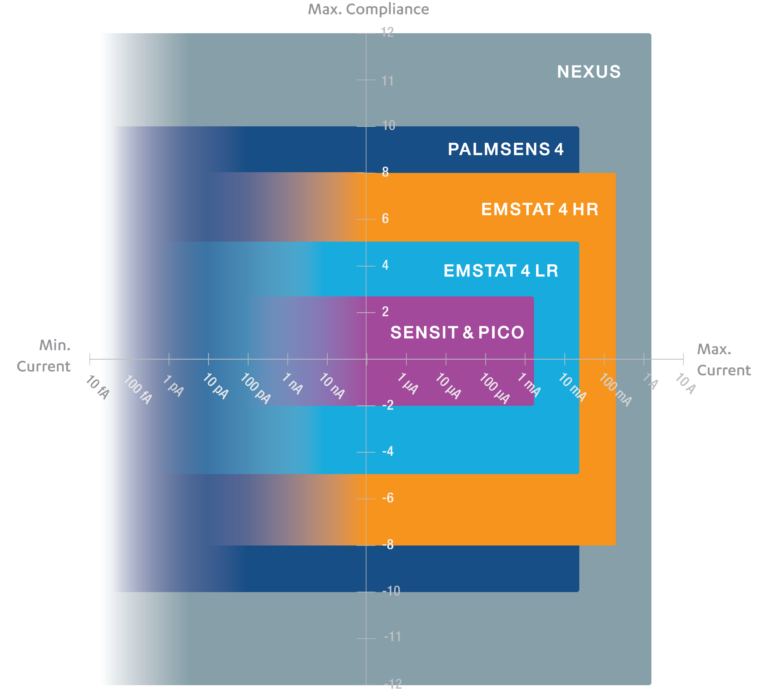

• • Potential range: ±10 V

  • Current range: ±1 A

  • Compliance voltage: ±12 V

  • Current resolution: down to 1 pA

  • Input impedance: >1 TΩ

• Electrochemical Impedance Spectroscopy (EIS):

  • Frequency range: 10 µHz to 1 MHz

  • Accuracy: <0.2% across the entire frequency range

• Memory and Data Handling:

  • Internal memory: 32 GB

  • Data export format: compatible with CSV and dedicated analysis software

• Connectivity:

  • Interfaces: USB-C, Ethernet (LAN)

  • Remote control and data management capabilities

• Physical Design:

  • Dimensions: Compact and portable design

  • Weight: Approximately 1.2 kg (or as specified by the manufacturer)

• Power Requirements:

  • Operating voltage: 100-240 V AC

  • Power consumption: Low power consumption for energy efficiency

• Software Support:

  • Compatible with advanced data analysis and control software for enhanced user experience

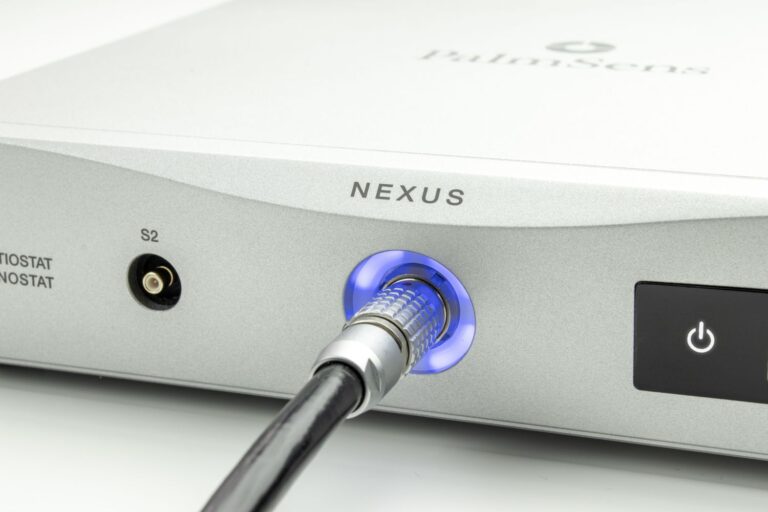

• Electrode connection: 2 mm banana pins for RE, WE, WE2, CE, GND, Sense and Sense 2

• Housing: aluminium body: 20 x 21 x 4.5 cm

• Weight: 1.8 kg

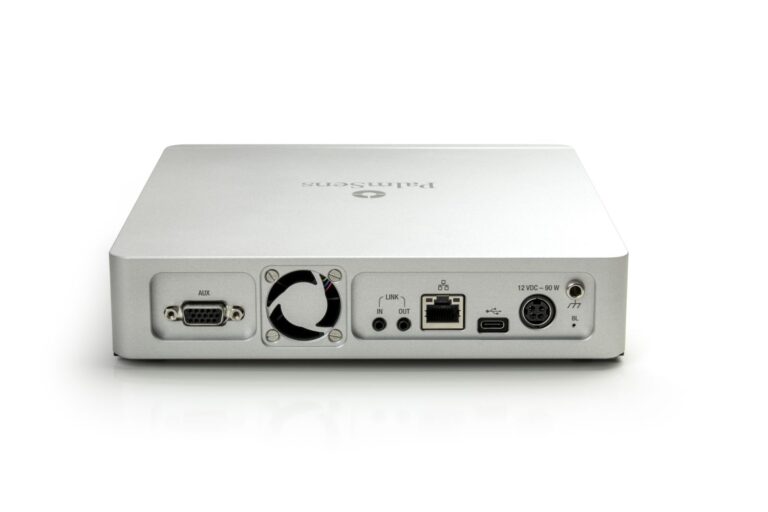

• Communication: ethernet and USB-C
• Internal storage space: 32 GB or > 800 million datapoints

Controlled potential mode

Controlled current mod

FRA / EIS (impedance measurements)

GEIS (galvanostatic impedance measurements)

Bipotentiostat
