SKALAR Primacs-MCS TOC Solids Analyzer

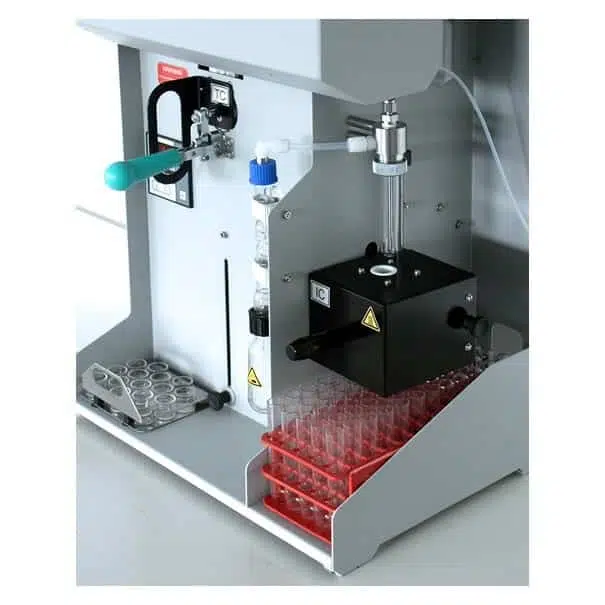

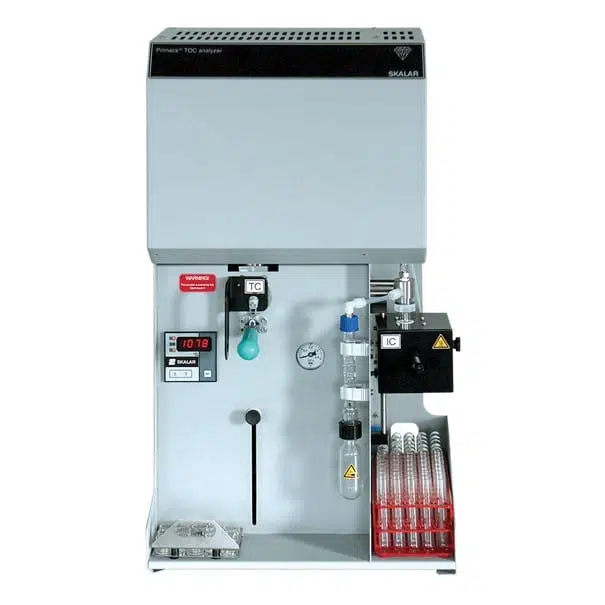

Skalar Primacs-MCS TOC Solids Analyzer

PrimacsMCS TC/TIC/TOC Material Analyzer for Solids by SKALAR Netherlands (Total Carbon and Total Inorganic Carbon).

The PrimacsMCS is an add-on module for Total Organic Carbon (TOC) analysis in solid samples like soil, sediments, and sludge.

It works in combination with the Skalar Formacs series TOC analyzer, providing an economical solution for TOC analysis of both aqueous and solid samples in environmental, industrial, and agricultural laboratories.

The system determines Total Carbon (TC) through catalytic oxidation at 1100°C and Total Inorganic Carbon (TIC) by acidification and purging, converting TIC to CO2, which is measured by a Non-Dispersive Infrared Detector (NDIR) located in the Formacs analyzer.

The Primacs software collects data and calculates TOC concentration by subtracting TIC from TC.

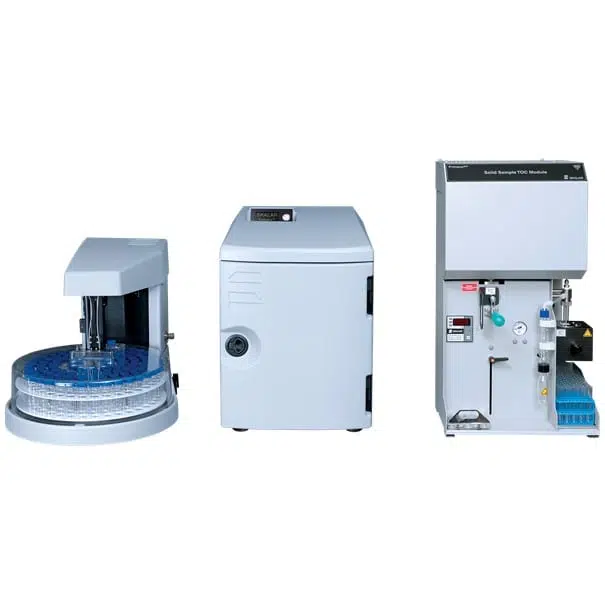

The Primacs MCS analyzer can also be integrated into a system with the Formacs HT-i analyzer (a liquid analyzer that includes an integral autosampler with direct injection into the combustion chamber) as well as with the Formacs HT model (the manufacturer's simpler liquid analyzer).

לפרטים נוספים והצעת מחיר, מלא את הפרטים למטה

מידע נוסף

FORMACS™ Series TOC/TN analyzers

תכונות המכשיר
ושיטות נתמכות

  • Analyzes TC, IC and TOC in a range of 500 µg to 40 mg absolute carbon in up to 3 g of sample weight
  • Dual of Total Carbon (TC) and Inorganic Carbon (IC)
  • Reusable quartz crucibles
  • Cost-effective design
  • Supports sample weights up to 3 grams
  • Automated balance interfacing
  • Innovative vertical sample introduction system
  • conforms to international regulations such as EPA, ISO, NEN-EN 13137 and US EPA 9060
  • Typical Applications:
    • Waste incinerators
    • Agricultural analysis
    • Fertilizer production
    • Pharmaceutical swabs
    • Others
