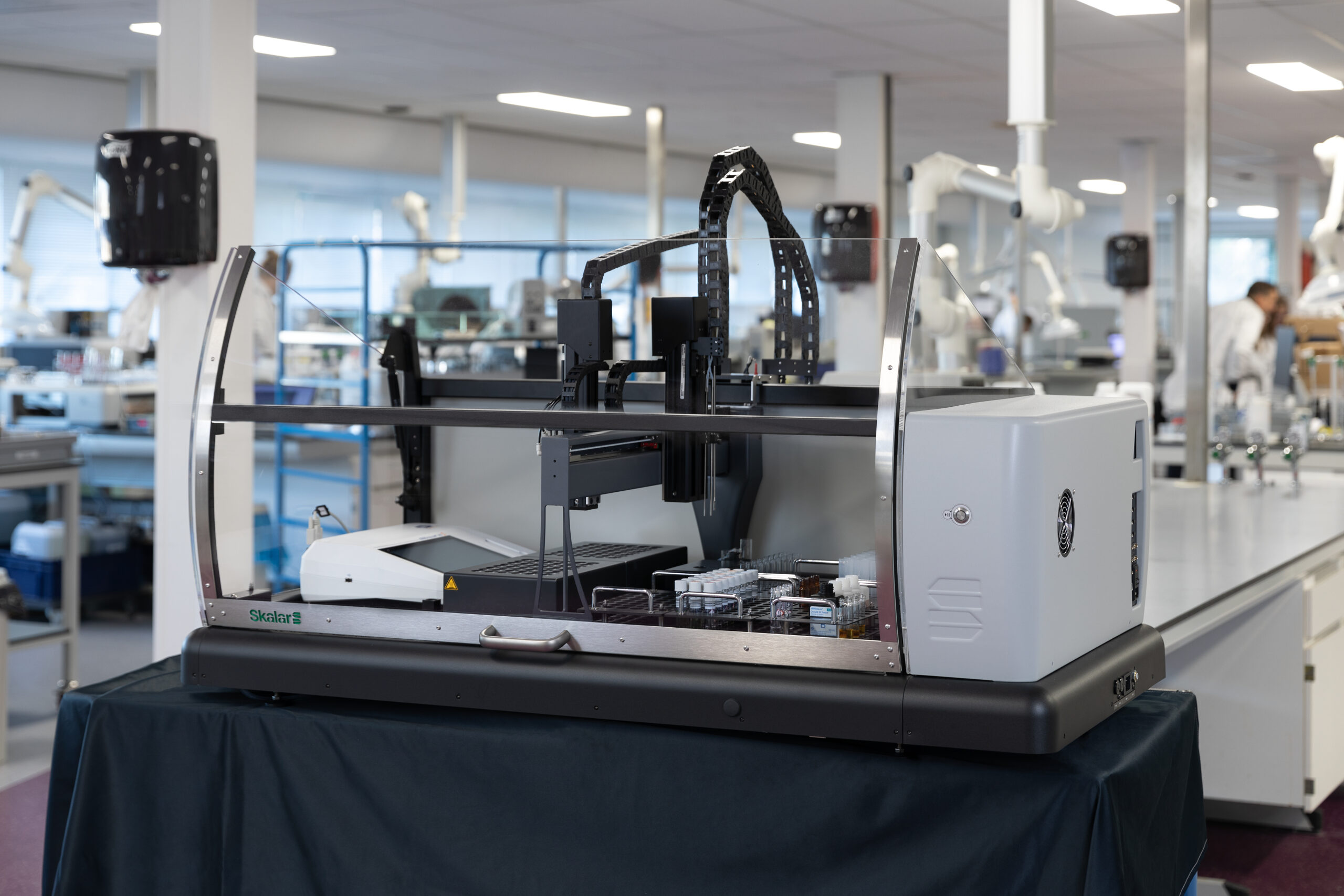

SKALAR SP2000 Test Kits Robotic Analyzer

מערכת רובוטית של SKALAR להכנת קיטים

פלטפורמת הרובוט אנלייזר של המותג SKALAR היא הקטגוריה החדשנית ומהתפתחת ביותר של היצרן.

רובוט האנלייזר היא פלטפורמה מודולארית המותאמת לצרכי הלקוח ויכולה לבצע הכנת קיטים של מגוון היצרנים המובילים כגון MERCK,
MACHEREY‑NAGEL ועוד….

עבודה עם רובוט Test Kit – חוסכת זמן ניכר בעבודת המעבדה, מאפשרת לקבל תוצאות חוזרות והדירות באופן קל, פשוט ומהיר.

הרובוט אנלייזר של סקלאר מגיע במגוון גדלים וקונפיגורציות בהתאם
לכמות הדוגמאות – מבדיקת 24 ועד 336 מבחנות בהרצה אחת ללא צורך בהתערבות המפעיל. (מפלטפורמה ברוחב של 70 ס”מ ועד 3.5 מטר.)

מידע נוסף

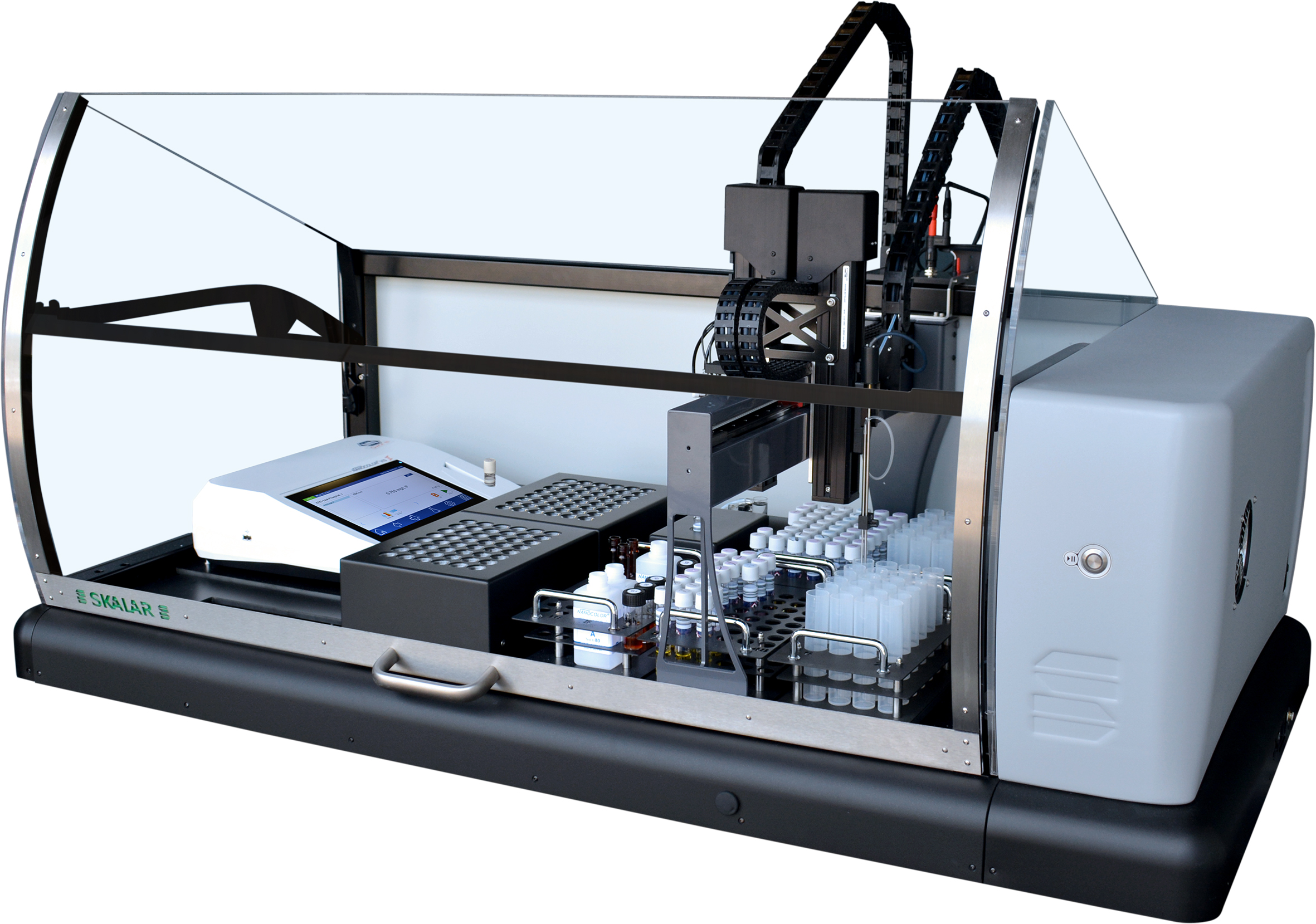

The Skalar’s sophisticated SP2000 robotic platform offers dedicated and flexible automation solutions for routine analytical testing. Automation is available for a variety of applications.

Ready-to-use photometric tests are being used by many water laboratories around the world. A lot of suppliers offer these kits for many important parameters in water and wastewater analysis such as COD, Total Phosphate, Total Nitrogen, Ammonium, Nitrite etc. The usage of these kits is simple and safe, but still requires many different manual handling steps in the analysis procedure such as sample pipetting, (un)screwing of the tube caps and tube transfer. Especially when the sample amount increases or different parameters have to be analyzed; this process can be very tedious and time consuming. In response to this, Skalar has developed the new SP2000 robotic analyzer series for the complete automation of ready-to-use test kits. The analyzer is a fully automated solution for handling the sample pipetting, mixing, heating, cooling and measurement of any water or wastewater sample using photometric test kits.

The SP2000 robot can be built to accommodate 24 up to 336 tubes in one batch. The analyzer can process multiple applications in parallel or sequentially at an individual sample level.

The analyzer can be configured with a second robotic arm to increase sample throughput by using a second gripper and sample needle and stirrer or to perform additional tasks such as test kit analysis combined with another application such as BOD.
