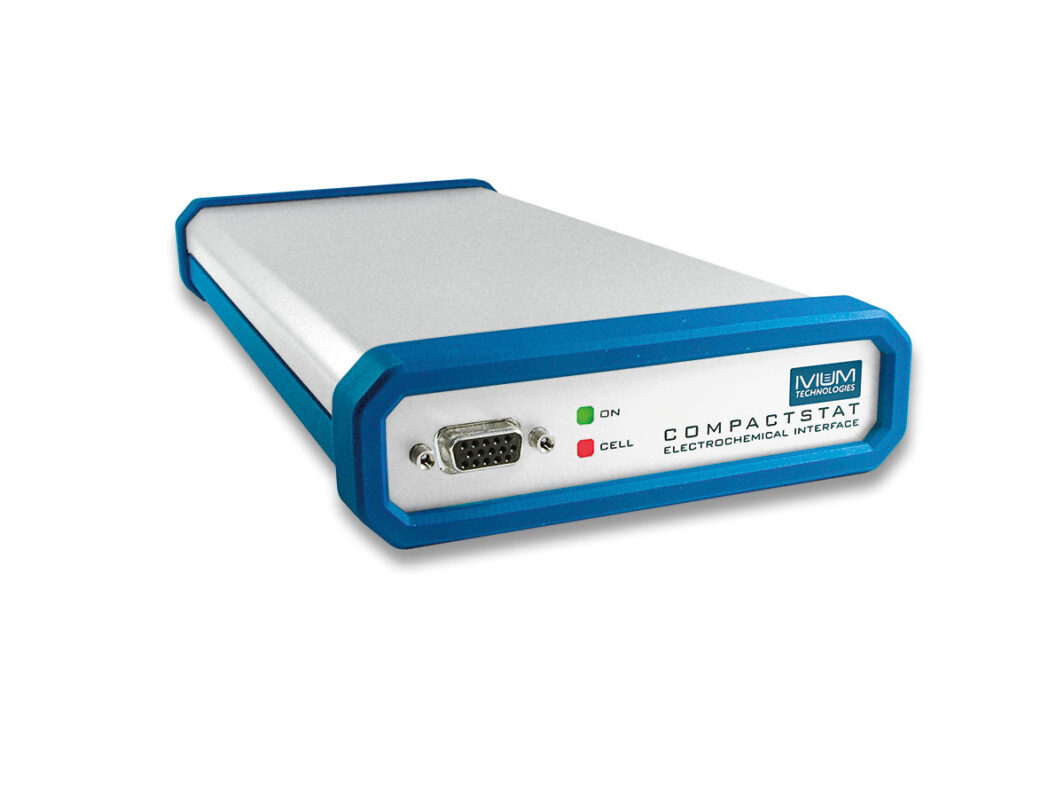

Ivium CompactStat.h - Compact Potentiostat
The Ivium CompactStat.h, is a Potentiostat with a compact footprint of under 600g and low power consumption. It operates directly via USB from a PC, eliminating the need for an additional power supply. Paired with a laptop, it becomes a fully mobile electrochemical measurement station, ideal for corrosion and analytical applications. (potentiostat – Galvanostat – EIS analyzer).
It comes in a protective hardcase that accommodates all cables, power adapter, test cell, electrode clips, and has extra space for accessories. Additionally, an optional Pelican® all-weather case is available.
Ivium CompactStat.h, פוטנציוסטט קומפקטי השוקל פחות מ-600 גרם ועם צריכת חשמל נמוכה, פועל ישירות באמצעות USB ממחשב, ומבטל את הצורך בספק כוח נוסף. בשילוב עם מחשב נייד, הוא הופך לתחנת מדידה אלקטרוכימית ניידת לחלוטין, אידיאלית עבור קורוזיה ויישומים אנליטיים.
הוא מגיע במארז מגן שמתאים לכל הכבלים, מתאם המתח, תא הבדיקה, תפסי האלקטרודות, ויש לו מקום נוסף לאביזרים. בנוסף, זמין במארז אופציונלי של Pelican® לכל מזג אוויר.
לפרטים נוספים והצעת מחיר, מלא את הפרטים למטה
More Information
Features
תכונות המכשיר
Low Noise and Galvanic Isolation:
The instrument features electrical isolation from power lines and the PC, offering superior noise immunity. It is capable of detecting very small signals, which is crucial for nano-technology applications. Additionally, it can be used in situations where the sample must be disconnected from a common ground (floating).
Complete Solution:
The CompactStat.h comes as a complete package with all standard electrochemical techniques available in the software. It also includes an integrated high-performance Frequency Response Analyzer for EIS measurements ranging from 10µHz to 3MHz. All necessary measurement and data processing software for Windows-based PCs is included.
Automation:
The instrument provides multiple analog and digital input and output ports for monitoring and controlling peripheral equipment, fully integrated into the software.
Expandability:
The CompactStat.h is expandable with various options and modules, including a Bipotentiostat, True Linear Scan generator, different power boosters, and multiplexers.
Hardware:
– Automatic current range selection from 1pA to 1A/1mV to 10V
– Automatic variable noise filter and potentiostat/galvanostat stability settings
– Simultaneous acquisition of current/potential and up to 8 peripheral analog signals
– Real-time data display up to 500 points/s and acquisition up to 100,000 points/s stored in the instrument memory
– Applicable scan rates from 1µV/s to 10,000V/s
– Minimum interval time of 10µs (0.125µs resolution)
– Result optimization through automated tuned filters, gain amplifiers, and DC-subtraction
