EmStat4X - Small, High Performance Potentiostat

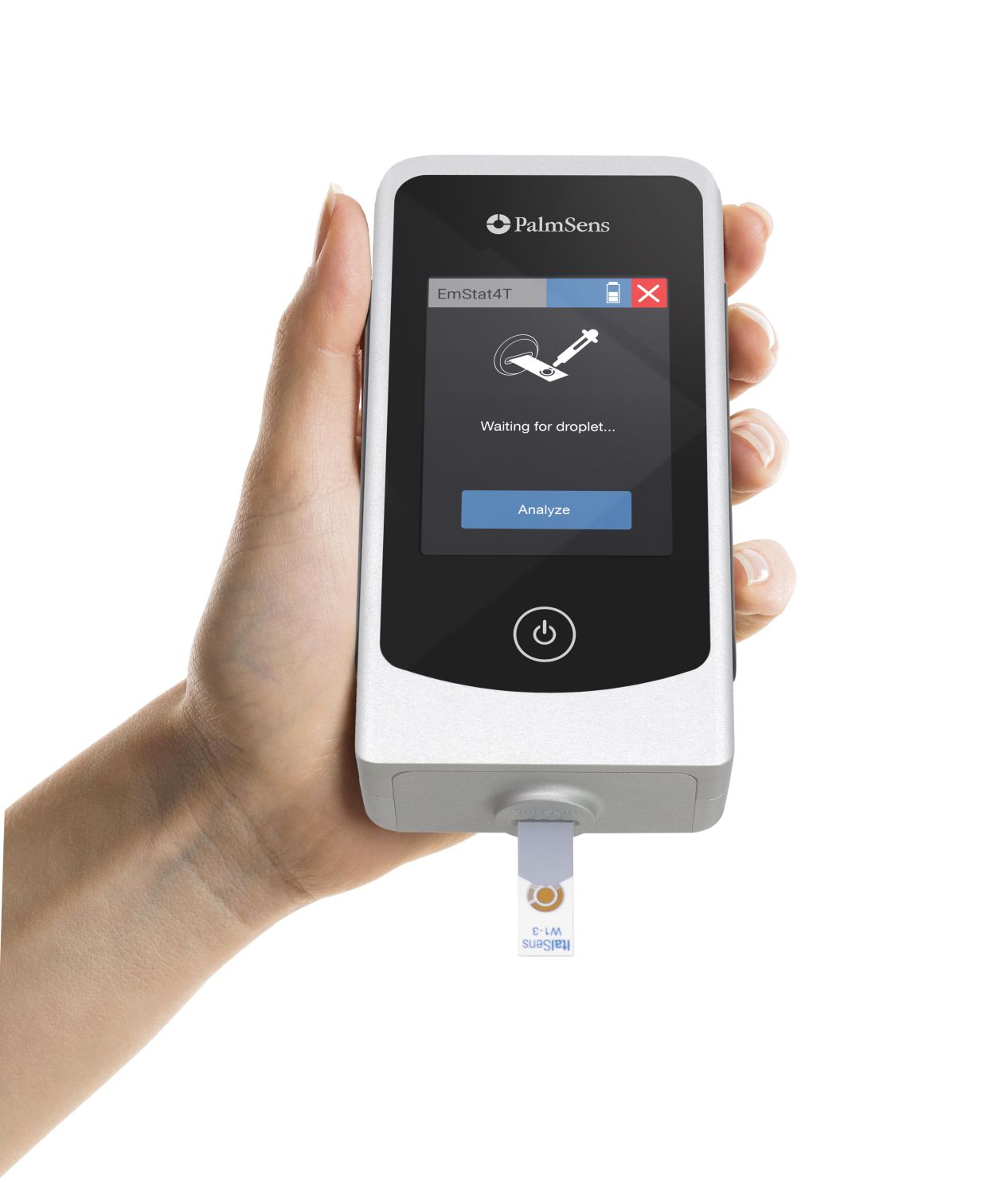

EmStat4T הנו פוטנציוסטט/גלוונוסטט עצמאי, קומפקטי ונייד, המציע שילוב בין ביצועים גבוהים להפעלה פשוטה ונוחה באמצעות מסך מגע מובנה.
פונקציונליות Potentiostat ו-Galvanostat: מאפשר שליטה מדויקת במתח או בזרם בתא אלקטרוכימי.
מנתח תגובת תדר (FRA) אופציונלי עבור EIS (ספקטרוסקופיית עכבה אלקטרוכימית): מאפשר ניתוח תכונות חשמליות של התא בתדרים עד 200 kHz.
ממשק הפעלה עצמאי:
מסך מגע צבעוני מאפשר הפעלה ישירה של שיטות מדידה, הגדרת פרמטרים וצפייה בתוצאות – ללא צורך במחשב.
אפשרויות בקרה:
תוכנת PSTrace עבור Windows

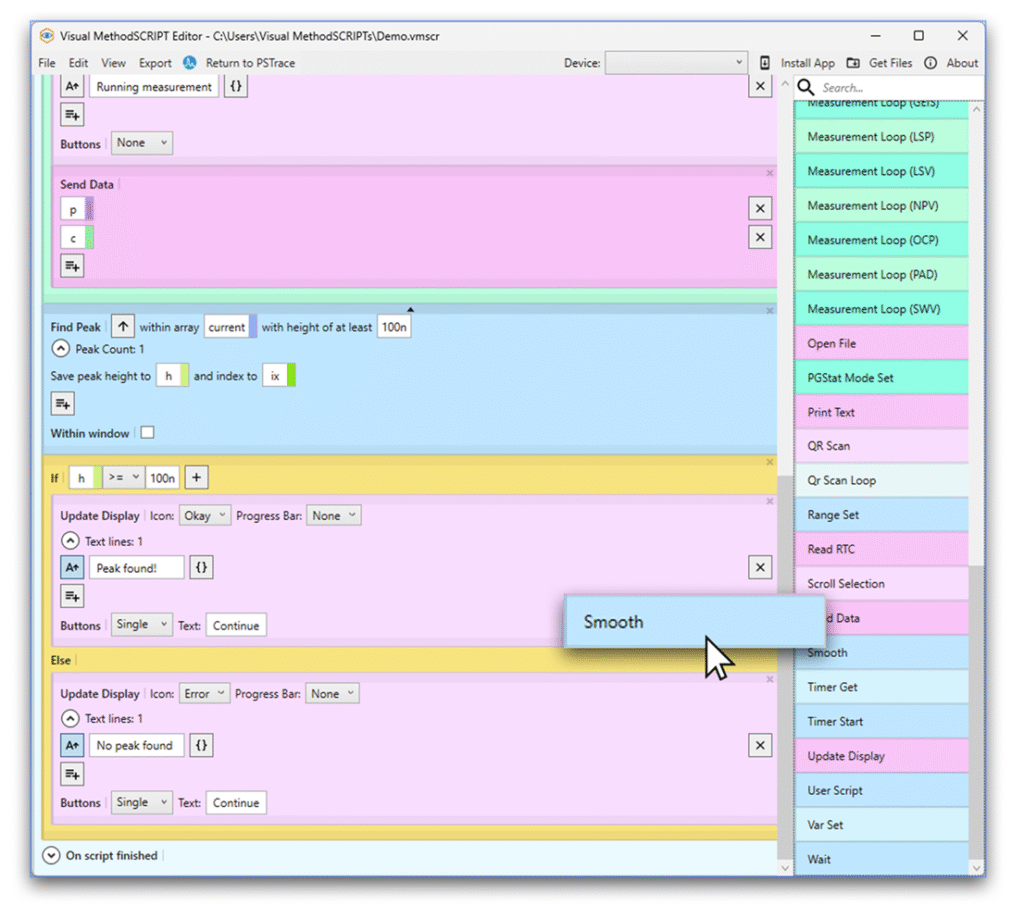

שליטה באמצעות MethodSCRIPT להפעלה חיצונית או אוטומטית

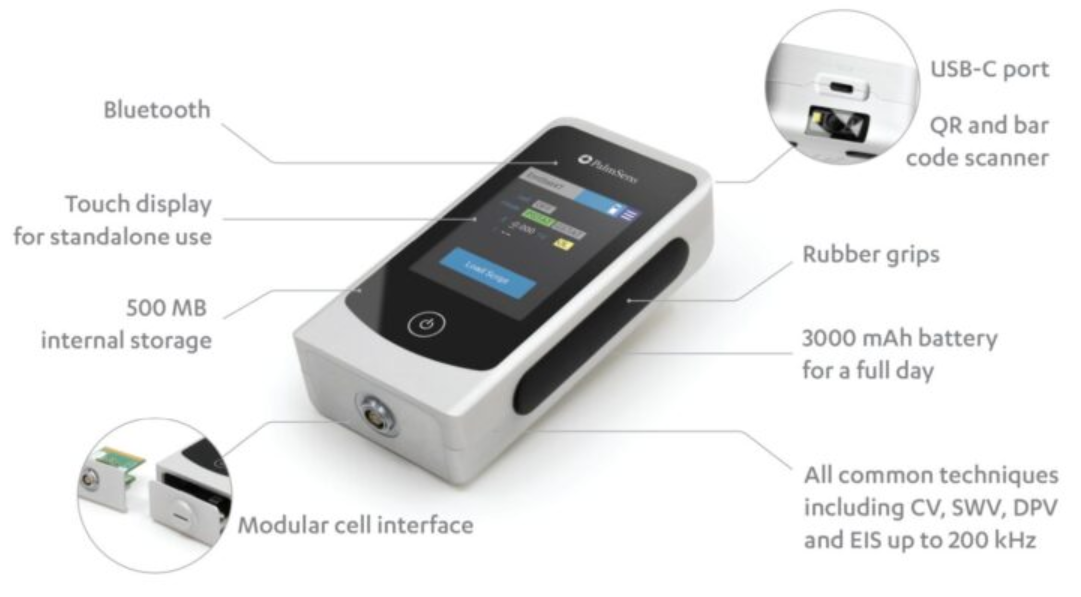

תכונות עיקריות:
טווח פוטנציאל של ±3 V וזרם עד ±30 mA
תמיכה ב-EIS עד 200 kHz
זיכרון פנימי בנפח 500 MB לאחסון תוצאות ומדידות
תקשורת USB ו-Bluetooth
ממשק משתמש אינטואיטיבי עם תפריטים וגרפים בזמן אמת
מבנה חזק וקומפקטי לשימוש בשטח או במעבדה
EmStat4T הוא פתרון אידיאלי לחוקרים, מפתחים ומהנדסים הזקוקים למכשיר אלקטרוכימי עצמאי, מדויק וקל לנשיאה – להפעלה מהירה ונוחה בכל סביבה.
לפרטים נוספים והצעת מחיר, מלא את הפרטים למטה
מידע נוסף
טכנולוגיה וספסיפיקציות
Technology & Specifications
- Potentiostat and Galvanostat functionality: precise control of voltage or current in an electrochemical cell.
- Optional Frequency Response Analyzer (FRA) for EIS (Electrochemical Impedance Spectroscopy) up to 200 kHz.
- Built-in touchscreen interface for standalone operation — no PC required.
- Supports PSTrace software for Windows and MethodSCRIPT for custom or automated control.
- Internal data storage of 500 MB for onboard method execution and data backup.
- USB and Bluetooth connectivity for flexible communication.
- Compact, lightweight design suitable for field or laboratory use.
- Optional battery operation for full mobility.
Compatible with PalmSens accessories such as cables, sensor connectors, and cell stands.
Ideal for portable electrochemical analysis, biosensor development, corrosion studies, and educational use.
CE certified and supported by PalmSens software ecosystem.
| Specification | EmStat4T |
| Applied potential range | ±3 V |
| Compliance voltage | ±5 V |
| Measured potential range | ±3 V |
| Current range | ±30 mA (8 current ranges from 1 nA to 10 mA) |
| EIS frequency range | up to 200 kHz |
| Data acquisition rate | up to 1,000,000 samples/s |
| Internal storage | 500 MB |
| Communication | USB-C, Bluetooth |
| Control options | Touchscreen, PSTrace, MethodSCRIPT |
| Specification | Detail |
| Power supply | USB-powered or internal battery |
| Display | 3.5” color touchscreen |
| Control interface | Touchscreen, USB, or Bluetooth |
| Dimensions | 95 × 155 × 45 mm |
| Weight | approx. 400 g |
| Internal memory | 500 MB |
| Supported software | PSTrace for Windows, MethodSCRIPT |
| Operating temperature | 0 – 40 °C |

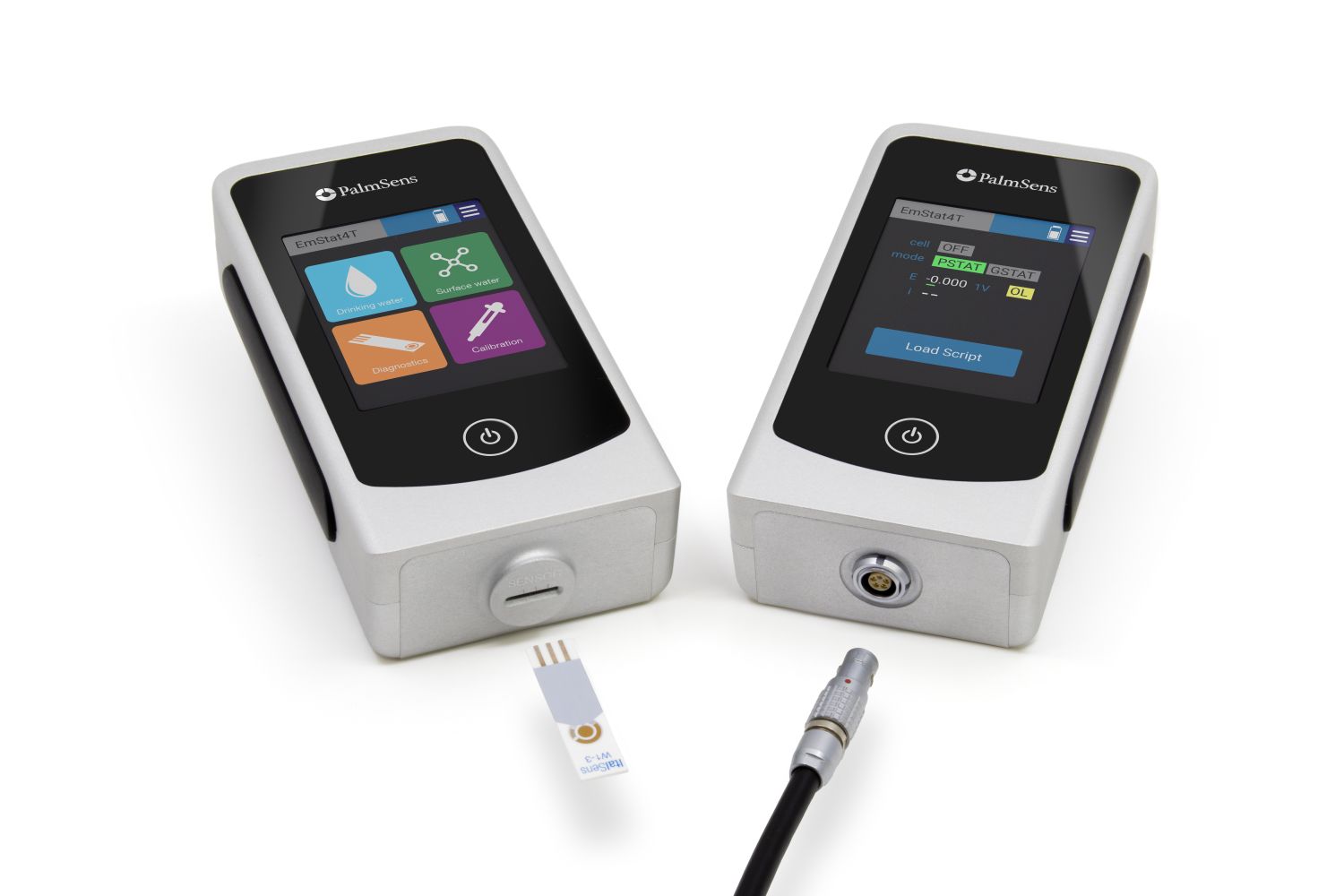

| Electrode connectors | 2 mm banana plugs (WE, RE, CE, GND) |
| Housing | Durable aluminum casing |
| Specification | EmStat4T |
| Applied potential range | ±3 V |
| Applied potential resolution | 100 µV |
| Applied potential accuracy | ≤ 0.2% of range ± 1 mV |
| Measured current ranges | 1 nA – 10 mA (8 ranges) |
| Measured current resolution | 0.009% of full scale (e.g. 92 fA at 1 nA range) |
| Measured current accuracy | ≤ 0.2% of full scale |
| EIS frequency range | up to 200 kHz |
| iR compensation | Supported (software-controlled) |
| Specification | EmStat4T |
| Applied current range | ±30 mA (8 ranges from 1 nA to 10 mA) |
| Applied current resolution | 0.01% of range |
| Applied current accuracy | ≤ 0.4% of applied current ± 0.2% of range |
| Measured potential ranges | ±50 mV, ±100 mV, ±200 mV, ±500 mV, ±1 V, ±3 V |
| Measured potential resolution | 96 µV at ±3 V range |
| Measured potential accuracy | ≤ 0.2% of full scale ± 1 mV |
| Control loop bandwidth | selectable (up to ~30 kHz typical) |
