  • IVIUM
    חברה הולנדית המייצרת פוטנציוסטטים שונים – החל ממערכות קומפקטיות וכלה במולטיפוטנציוסטט בעל ספיסיפיקציות זרם ומתח גבוהים.
    המערכות של IVIUM ידועות ביכולות הגבוהות שלהן, בנוחות ההפעלה והיציבות של המערכת

Instrument overview

Portable USB powered

 Scan range: ±30mA/±10V

FRA/EIS: 10µHz-1MHz

Size: 16 x 6.7 x 1.9cm

Weight: 300g

Waterproof: ip44

 Available in ±30mA/±10V, ±800mA/±10V, ±250mA/±20V, ±30mA/±100V, ±1.25A/±6V, and ±15mA/+200V configuration

FRA/EIS: 10µHz – 3MHz

CompactStat.h20250

CompactStat.h10800

CompactStat.h10030

CompactStat.h standard

CompactStat.h06125

CompactStat.h20015

Entry level

 Available in ±100mA/±10V, ±1A/±10V, ±2A/±20V, ±5A/±10V, ±10A/±5V configuration

8 current ranges: 10nA up to 10A

Optional FRA/EIS: 10µHz to 1MHz

 Compliance: ±100mA/±21V

FRA/EIS: 10µHz – 250kHz (optional)

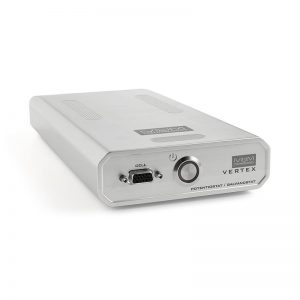

Vertex.100mA

Vertex.1A

Vertex.20V

Vertex.5A

Vertex.10A

Vertex.Q (multi-channel)

Multi-channel

sModule 2A/20V

 8 modules/32 channels per frame (stackable up to 64 channels)

Multi-channel Potentiostat/Galvanostat/ZRA

Standard integrated impedance analyser in each channel: 10µHz – 250kHz (1MHz optional)

qModule 30mA/10V

 8-channel Potentiostat/Galvanostat/ZRA

19" rack-mountable housing

Up to 128 channels/rack

Affordable high-spec electrochemical test system

Each channel: Dedicated embedded FRA/EIS

OctoBoost16000

sModule 10A/5V

Multi-channel Vertex.Q

 Unique benefits of the Vertex on multiple channels in one portable instrument

Available as a 4-channel instrument: 4 x ±30mA/±10V

Optional FRA/EIS: 10µHz to 1MHz

dModule 500mA/10V

dModule 2.5A/10V

Ivium-n-Stat

High power

IviumStat.h standard

 Scan range: ±5A/±10V

FRA/EIS: 10µHz to 8MHz

XP

 XP40 (±40A/±10V) and XP20 (±20A/±20V)

Optional FRA/EIS: 10µHz to 500kHz

Integrated current interrupt

Direct K-type thermocouple input connector

All Options & Modules

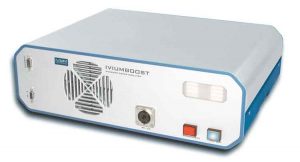

Boosters

Potential/Current booster series for Ivium instruments

High power boosters

External CompactStat boosters

Internal CompactStat Boosters

Brochure  Download brochure

Communication

Keep data safe during prolonged measurement and allow remote and multiple user communication

µDataSecure

DataSecure

Current Interrupt module 5A

Explore the full potential of your Ivium instrument with functionality enhancements such as the smooth analog ramp option, the bipotentiostat capability, or faster data sampling modules

Light modules

IviSUN

Programmable light sources for photo-electrochemical investigation

LightSens

Multiplexers

uMUX

Expand the channel capability for sequential measurement, or control up to 32WEs for multi-potentiostat use

Peripheral modules

Extensive range of modules for peripheral interfacing
compatibility chart
